JF-WDL
| Quantity: | |
|---|---|

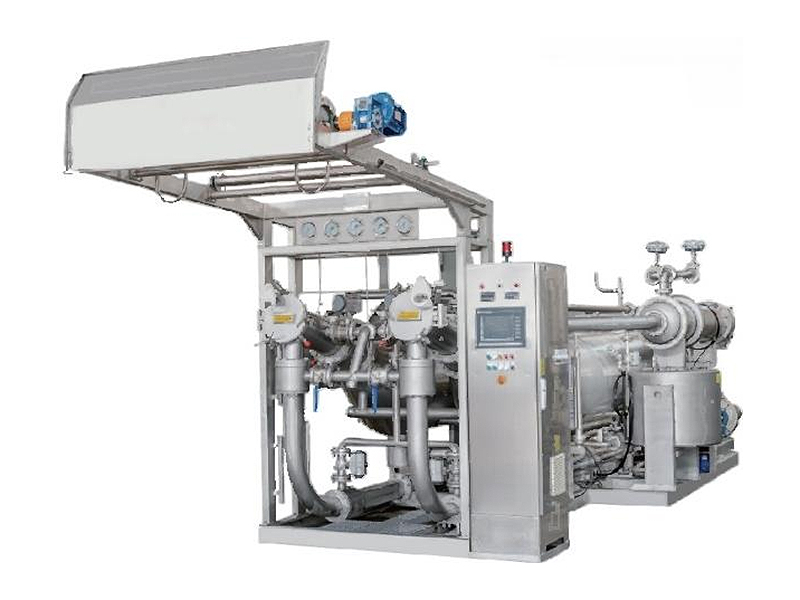

The JF-WDL High Temperature And High Pressure Non-guide Wheel Dyeing Machine is a professional textile dyeing equipment engineered specifically for high-end fabrics and new fabric development. It excels in processing fabrics with a weight range of 30g/m² to 200g/m², including delicate high-end fabrics and elastic stretch fabrics. Unlike traditional dyeing machines, its unique non-guide wheel design eliminates common defects such as fabric scratches and creases, ensuring exceptional dyeing uniformity and fabric quality. With a maximum fabric running speed of 600m/min and a flexible liquor ratio of 1:1.5~8, this machine balances high production efficiency with energy and chemical savings, making it an ideal solution for textile manufacturers focusing on premium fabric processing.
The JF-WDL machine is highly versatile, capable of handling various fabric types—from lightweight 30g/m² materials to medium-weight 200g/m² fabrics. It is particularly optimized for high-end fabrics (e.g., silk-blended fabrics) and stretch fabrics (e.g., spandex blends), avoiding issues like guide wheel winding that often occur with low-gram-weight fabrics.
Equipped with a precision nozzle system, the machine allows nozzle pressure adjustment within the range of 0.9~3.5kd/cm². This flexibility ensures optimal dye penetration for different fabric thicknesses, preventing over-jet damage to delicate fabrics while ensuring thorough coloring for thicker materials.
The signature non-guide wheel structure is a key advantage: it removes contact points that cause friction between the guide wheel and fabric, eliminating scratches, creases, and uneven stretching. This design directly addresses the problem of color difference in dyed fabrics, a critical requirement for high-end textile production.
Low tension is a core feature of the JF-WDL. For lightweight fabrics, this design avoids the risk of fabric winding around guide wheels, reducing downtime and material waste. The dye liquid’s jet flow drives the fabric smoothly, further enhancing dyeing performance and consistency.
The machine’s liquor ratio (1:1.5~8) is adjustable based on actual processing needs. A lower liquor ratio reduces the consumption of dyes, chemicals, and water, lowering production costs while minimizing environmental impact—aligning with modern textile manufacturers’ sustainability goals.
Equipped with a temperature program controller, the JF-WDL allows users to set customized heating, insulation, and cooling rates for different dyeing processes. This ensures stable working temperature control (up to 140℃) and reliable dyeing quality, even for temperature-sensitive fabrics.
It performs best with 30g/m²~200g/m² fabrics, especially high-end fabrics (e.g., luxury cotton, silk blends) and stretch fabrics (e.g., spandex, Lycra blends). It also adapts to special and new fabrics, such as eco-friendly recycled fiber fabrics.
The maximum fabric speed reaches 600m/min, significantly reducing dyeing cycle time compared to traditional machines (average 300~400m/min).
The anti-clogging nozzle (reverse nozzle) reverses the direction of dye liquid flow at set intervals, dislodging any fabric fibers or debris that might block the chamber—ensuring continuous operation.
